Why Do Your Dimmable LEDs Flicker at Low Levels?

You spent a fortune upgrading your home lighting to energy-efficient LEDs, expecting a modern, sleek aesthetic. Instead, you’re sitting in a living room that strobes like a disco the moment you try to dim the lights for a movie. It is one of the most common service calls I receive as an electrician, and the frustration is palpable.

Most homeowners assume they bought a defective batch of bulbs. They return them, buy a different brand, and the problem persists. We often hear advice like “just buy better bulbs” or “check for loose wires.” While loose connections are a safety hazard, they are rarely the culprit for rhythmic strobing. To solve this, we need to look beyond the bulb and understand the invisible electrical ecosystem inside your walls. We must consider factors ranging from the type of dimming curve to interference from other smart devices.

But if the problem isn’t the bulb itself, what is it? The issue usually lies in the incompatibility of eras: trying to drive a digital microchip (the LED driver) with an analog chopper (the dimmer) designed for tungsten filaments. This guide will walk you through the physics of this mismatch and, more importantly, how to fix it.

The following sections break down the electrical faults causing your lighting issues and provide a systematic path to stability.

This guide is structured to take you from diagnosis to specific repairs. Here is the roadmap for your troubleshooting:

Why Leading Edge Dimmers Don’t Work with LED Bulbs

The most common culprit for flickering is a “Leading Edge” (TRIAC) dimmer. These devices were designed decades ago for incandescent bulbs, which are simple resistive loads. They work by violently chopping off the front of the AC sine wave to reduce power. While a tungsten filament doesn’t mind this rough treatment, the sensitive electronics inside an LED driver struggle to cope.

When a TRIAC dimmer switches off at the peak of the AC cycle, the stored energy has nowhere to go. It spikes through the coil and bleeds into the LED power supply. This results in the visible flicker and audible buzz you are experiencing. To visualize this, imagine trying to fill a water balloon with a fire hose that turns on and off instantly; the pressure spikes would eventually burst the balloon. In your circuit, that pressure is voltage.

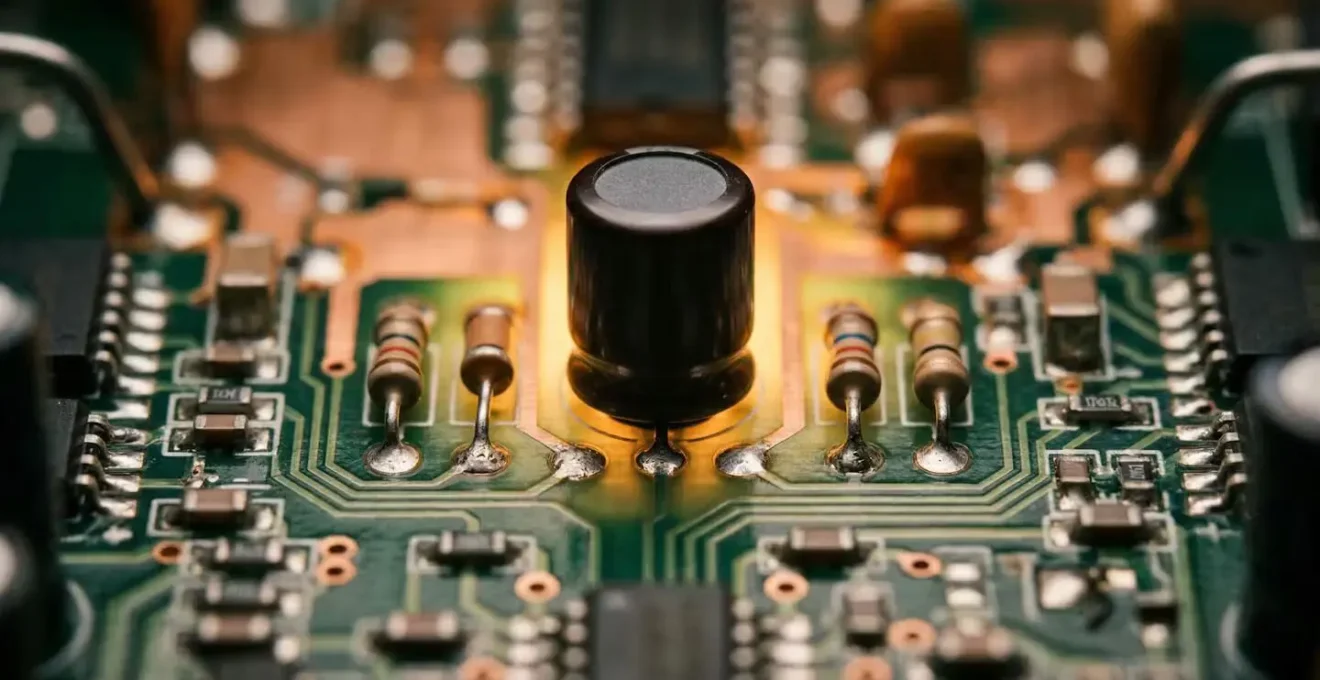

The image below illustrates the complex circuitry involved in dimming. You can see how the components must physically manage the electrical flow, and why precision matters.

As you can see, the internal components are intricate. If the dimmer relies on old TRIAC technology, it simply cannot communicate effectively with the modern capacitors shown above. The solution is almost always upgrading to a “Trailing Edge” dimmer, which reduces power more gently.

How to Calculate the Total Load for Your Dimmer Switch

A standard mistake is assuming that a 600W dimmer can handle 600W of LEDs. This is dangerous math. LED drivers have a high “inrush current”—a massive spike of power drawn for a fraction of a second when they turn on. If you load a dimmer to its nominal capacity with LEDs, that startup spike can weld the contacts inside the switch or trip the breaker immediately.

To stay safe, industry experts recommend the “divide by 10” rule, meaning divide incandescent rating by 10 for LED load. For example, a dimmer rated for 600W of incandescent light should only control a maximum of 60W of LED lighting. Exceeding this causes heat buildup and component failure, leading to that rhythmic strobing effect.

We saw this recently in a commercial retrofit where eight 220W drivers were installed on one circuit. The steady current was fine, but the startup spike reached 840A, destroying the dimmer. Never ignore the inrush current specifications.

Cheap vs Branded LEDs: Which Dim Smoothly to 1%?

Not all dimmable LEDs are created equal. The difference between a smooth fade to darkness and a flickering mess at the 20% mark often comes down to the dimming method: Pulse Width Modulation (PWM) versus Constant Current Reduction (CCR). Cheap generic bulbs often use basic implementations of these technologies that lack the filtering necessary for stability.

High-end drivers, like those from eldoLED or Lutron, use hybrid technologies to get the best of both worlds. A cheap driver might cut out completely when the signal gets low (the “popcorn effect”), whereas a branded driver will maintain a stable arc of light down to 0.1%. As noted by lighting experts at eldoLED/Acuity Brands:

Hybrid HydraDrive technology gives the control and deep dimming achieved with PWM and the smooth dimming, low noise and flicker-safe operation that results from CCR.

– eldoLED/Acuity Brands, How Designers can Use Flicker Safe Dimming

To help you choose, here is a breakdown of the two main technologies found in LED drivers:

The table below compares how these methods impact performance, which explains why your camera might see banding lines on cheap LEDs.

The Neutral Wire Requirement for Smart Dimmers

If your lights flicker or glow faintly even when switched off, you are likely dealing with “ghosting.” This happens frequently with smart dimmers installed in older switch boxes that lack a neutral wire. Smart switches need power to stay connected to your Wi-Fi, and without a neutral wire to complete the circuit, they trickle a small current through the bulb itself.

This parasitic current charges the capacitors in the LED driver until they have enough energy to flash the light briefly, creating a repeating cycle. The fix involves either installing a bypass capacitor (dummy load) at the fixture to soak up this current or pulling a new neutral wire to the switch box.

How to Maintain Warmth When Dimming (Dim-to-Warm Technology)

One complaint homeowners have after switching from halogen to LED is the “clinical” feel of the light at low levels. Halogens naturally shift to a warm amber glow as they dim. Standard LEDs do not; a 3000K LED stays 3000K even at 1% brightness, which can feel gray and uninviting.

This is where “Dim-to-Warm” technology comes in. These advanced drivers mimic the curve of an incandescent bulb. Technical data confirms that 3000K at 700mA drops to 2700K (or warmer) as the current decreases. This effect is crucial for residential settings where atmosphere is priority.

The image below captures exactly this effect. Note how the light source doesn’t just get darker; it gets richer and warmer, creating an inviting space.

As illustrated, achieving this requires specific drivers. If your goal is ambiance, ensure your LEDs are explicitly rated as “Dim-to-Warm” or “Warm-Dim,” otherwise, you will just get a duller version of the same white light.

How to Dim LEDs Without Flickering or Buzzing

Sometimes, everything is installed correctly—compatible dimmer, good bulbs, neutral wire—and the lights still flicker periodically. In many regions, this is caused by “ripple control” signals sent by utility companies over the power lines to manage peak demand (like switching hot water heaters). LEDs are so sensitive that they interpret these signals as power fluctuations.

If you are in an area with ripple control, you may need an inline filter. However, for most users, the buzz or flicker at the bottom end of the range is simply a calibration issue. Most modern dimmers have a “low-end trim” adjustment wheel or programming mode.

Adjusting the Low-End Trim:

• Identify the lowest stable point: Dim the light until it flickers, then brighten it slightly until it stabilizes.
• Set the trim: On manual dimmers, turn the small dial on the side or under the faceplate to lock this as the new minimum. On smart dimmers, use the app or button combination to set the floor.
• Test: Turn the light off and on again to ensure it fires reliably at this new low level.

Zigbee vs RTS: Which Protocol Controls Louvers Reliably?

In a fully integrated home, you might be controlling dimmable LEDs and motorized louvers (blinds) from the same panel. Troubleshooting flickering lights often leads to a review of the entire wireless mesh network. When it comes to reliability for motors, the choice between Zigbee and RTS (Radio Technology Somfy) is critical.

RTS is a legacy one-way protocol. You press a button, and the signal fires. If the motor misses it, the blinds stay closed. Zigbee, on the other hand, is a mesh network. It confirms receipt of the command. If the signal is blocked, it reroutes through your smart bulbs or other powered devices to reach the motor.

The table below highlights why Zigbee is generally superior for complex environments, despite RTS being common in older installs.

How to Protect Motorized Louvers from High Winds Automatically?

While this might seem distant from LED flickering, both systems rely on the stability of your home’s electrical and automation backbone. Just as voltage spikes damage LEDs, wind gusts destroy motorized louvers if the protection logic fails. We often see smart homes where the “internet” goes down, and suddenly the house cannot protect itself.

For critical protection, never rely on cloud-based automations (like IFTTT). You must use a local wind sensor hardwired to the motor controller. This ensures that even if your Wi-Fi is down (perhaps due to the same storm), the louvers will close when the wind speed threshold is breached.

Audit your dimmers today: if you see “Incandescent Only” on the metal tab, replace it immediately to stop the strobing and save your expensive bulbs.
